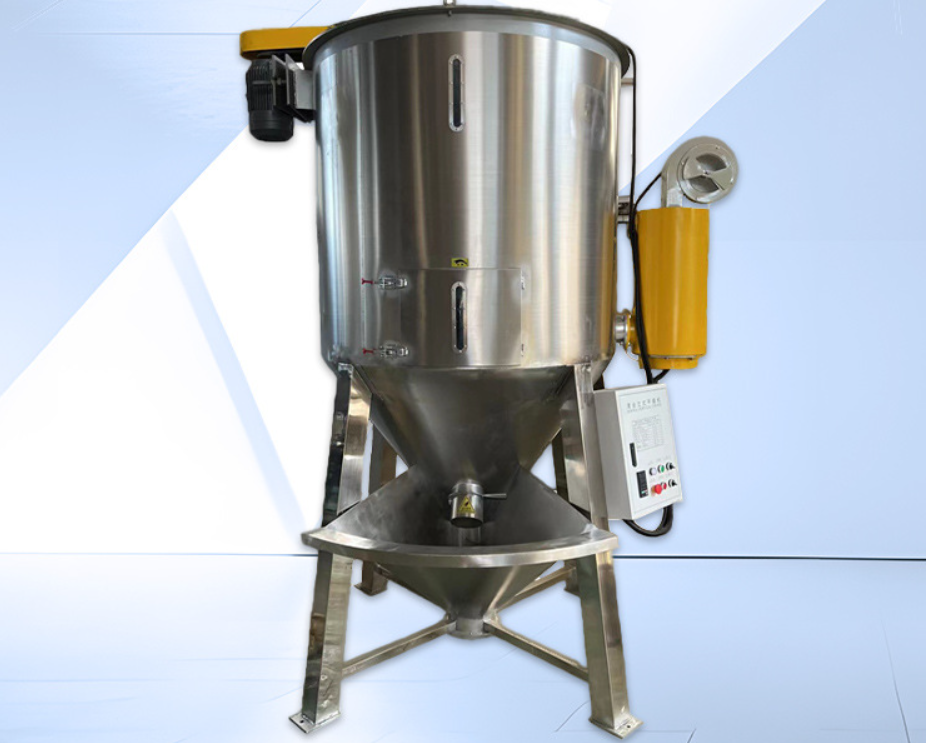

The plastic pellet vertical mixing and drying integrated machine is a plastic processing equipment that integrates mixing and drying functions, mainly used for mixing and drying materials such as plastic pellets and powders. Here is a detailed introduction:

　　working principle

　　By utilizing the rapid rotation of the screw, the raw materials are lifted from the bottom of the barrel from the center to * * *, and then scattered back to the bottom in an umbrella shape, causing the raw materials to roll and stir up and down inside the barrel to achieve uniform mixing. At the same time, for heating type equipment, air is sent to the electric heating box through a blower, and after heating, it becomes hot air, which is blown out from the center of the lower part of the barrel to the surrounding areas, penetrates the material layer, performs heat exchange, and takes away moisture, achieving the purpose of drying.

　　Features

　　Mixing function: It has automatic operation timing, overload protection, feeding limit alarm and other functions, which can evenly mix a large amount of raw materials in a short time, mix quickly and evenly, and can be widely used for mixing plastic sheets, crushed materials, powder materials, etc.

　　Drying function: Stirring and drying are synchronized, the material continues to flow during the drying process, the heat penetrates evenly, the drying time is short, and it is not easy to clump. Double layered barrel design with insulation material sandwiched in the middle, achieving good energy-saving effect. Specially designed dual tube moisture outlet can effectively discharge moisture and collect dust.

　　Easy to operate: adopting a four-wheel upright design, occupying a small area. The feeding height is generally around 800mm, which is convenient for feeding and can be done by multiple people or by adding feeding equipment. The barrel is equipped with an entrance door, making it easy and fast to change colors, materials, and clean.

　　Safety protection: Equipped with electronic control safety protection devices to ensure safe operation. Some models are also equipped with time relays to control heating and stirring time, avoiding excessive heating or stirring.

　　Scope of Application

　　Suitable for industries such as pellet cutting, plastic granulation, masterbatch manufacturing, plastic modification, recycled material recycling and processing, and large-scale injection molding. It is possible to mix the raw materials (such as water nozzles, colorants, chemical powders, etc.) before granulation, and it is also possible to centrally mix the raw materials that cause differences in the finished particles due to different time periods, in order to improve production efficiency and product quality.

　　Equipment selection

　　There are various capacity specifications available, ranging from 0.5 tons to 15 tons, for customers to choose from. Customers can choose heating or non heating machines according to their own production needs, and the barrel material is also available in stainless steel and iron plate types.
